2.54mm Pitch 2x8Pin 16Pin 16 Wires IDC Flat Ribbon Cable F/F

2.54mm Pitch 2x8Pin 16Pin 16 Wires IDC Flat Ribbon Cable F/F

2.54mm single or double row, conductor: The interval number of line 2-80 core, Conductor is 0.1mm*7 Product advantage: Soft, compact and easy bending. Suitable for need of mechanical parts in data transmission.Main market: Automobile, mechanical equipment

Product Introduction

Product Description

16-Pin IDC to 16-Pin IDC Ribbon Cable

IDC Ribbon cables

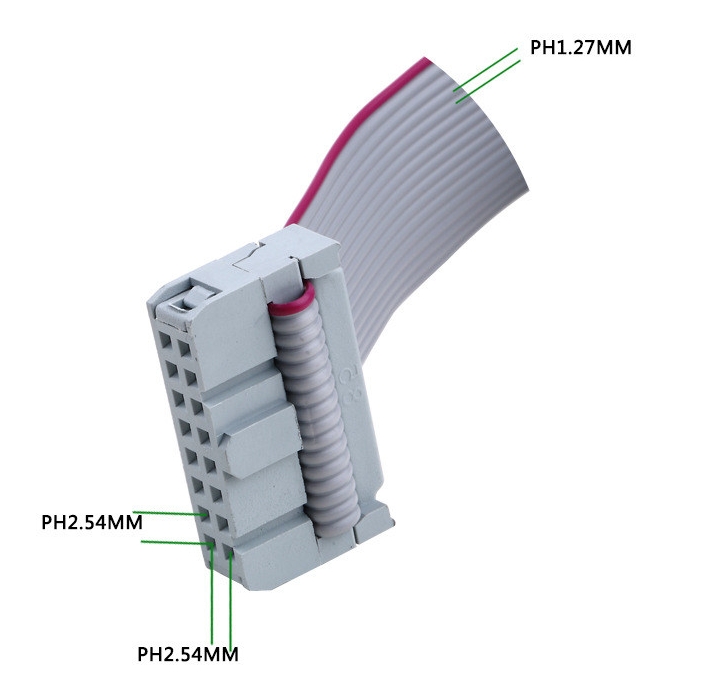

IDC Ribbon Cable Socket

Technical Specifications

Item
Product #	STC0095
Warranty Information
Warranty	Lifetime
Performance
Applications	Desktop data transfer, Power transfer, Electronics, Communication data transfer
Connector
Connector A Connector B Connector pitch range Conductor/Cable Pitch Range	1 – IDC 16 pin Female 1 – IDC 16 pin Female 1.27mm, 2.0mm, 2.54mm 0.635mm, 1.0mm, 1.27mm
Physical Characteristics
Cable Length Color Product Weight Applicable Wire Wire Standard	10cm, 15cm, or customized by customers Black/Gray/Red 0.8oz [24g] 32AWG 30AWG 28AWG 26AWG 24AWG Hook Up wire, UL, VDE, CSA
Packaging Information
Included in Package	1- 16 Pin IDC Flat Ribbon Cable-F/F
Service
Sample	Free

Technical Datasheet

Cable Pitch	No. Of Wire	Number of IDC Connector Pin	IDC Female Connector Pitch	Applicable Wire
1.27mm	6	2*3	2.54mm	28AWG
	8	2*4
	10	2*5
	12	2*6
	14	2*7
	16	2*8
	18	2*9
	20	2*10
	22	2*11
	24	2*12
	26	2*13
	30	2*15
	34	2*17
	40	2*20
	44	2*22
	50	2*25
	60	2*30
	64	2*32
