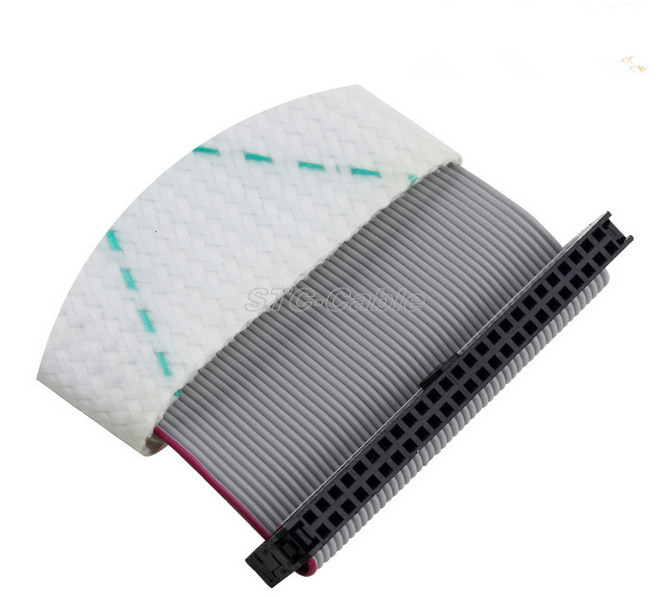

2.00mm Pitch 2x20Pin 40Pin 40Wires IDC Flat Ribbon Cable F/F

Used to transmit data between interface parts with a main board, useful for custom computing, Raspberry Pi and Arduino

Product Details

Product Description

IDC Hard Drive Flat Ribbon Cables

IDC 40Pin Hard Drive Flat Ribbon Cables

Technical Specifications

Item

Product #

STC00104

Warranty Information

Warranty

Lifetime

Performance

Applications

Desktop data transfer, Power transfer, Electronics, Communication data transfer

Connector

Connector A

Connector B

Connector pitch range

Conductor/Cable Pitch Range

1   IDC 40 pin Female
 1   IDC 40 pin Female

1.27mm, 2.0mm, 2.54mm

0.635mm, 1.0mm, 1.27mm

Physical Characteristics

Cable Length

Color

Product Weight

Applicable    Wire

Wire Standard

10cm, 15cm, or customized by customers
Black/Gray/Red
 0.8oz [24g]
 32AWG 30AWG 28AWG 26AWG 24AWG

Hook Up wire, ; UL, VDE, CSA ;

Packaging Information

Included in Package

;1- 2.0MM 40 Pin IDC Flat Ribbon Cable-F/F

Service

Sample

Free

Technical Datasheet

Cable Pitch

No. Of Wire

Number of ; IDC Connector Pin

IDC Female Connector Pitch

Applicable Wire

1.0mm

6

2*3

2.0mm

30AWG

8

2*4

10

2*5

12

2*6

14

2*7

16

2*8

18

2*9

20

2*10

22

2*11

24

2*12

26

2*13

30

2*15

34

2*17

40

2*20

44

2*22

50

2*25

60

2*30

64

2*32
